EasyPulse Total Oxygen Concentrator TOC PM4400

by Precision Medical

Do you have a valid prescription for this product?

Total Oxygen Concentrator
It is the perfect balance of mobile and stationary oxygen delivery. It delivers continuous flow and pulse flow all in the same unit weighing less than 11.5 pounds. No need to have 2 separate oxygen concentrators.
Easy To Use
The EasyPulseTOC has an easy to use patient interface. One simple knob easily sets the oxygen flow to either pulse or continuous mode. Unlike many other TOC’s, there are no confusing electronic controls. Perfect for the Non-Delivery Oxygen Model The EasyPulseTOC is the ideal product to help you reduce costly cylinder deliveries and eliminate the need for stationary oxygen concentrators.
Makes Mobility Easy
The convenient fold-up cart with its adjustable telescoping handle and oversized wheels is easily attached to the TOC enabling the patient to take the unit anywhere and by any means. It is FAA approved for use on airlines and fits easily under an airline seat.
Excellent Battery Life
The battery lasts 3 hours. And with optional, easy to change extra batteries, you can extend your mobility as long as you wish.

Everything You Need is in the Box
Open the box and you are set to go!
  • The Concentrator EasyPulse TOC PM4400
  • Cart
  • AC Power Supply
  • AC Power Cord

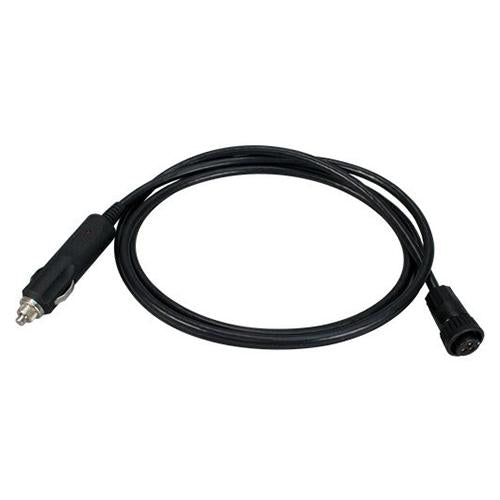

  • DC Power Cord
  • Battery
  • Accessory Bag
  • User Manual
Height: 14.63 in (37.16 cm)
Width: 10.50 in (26.67 cm)
Length: 7.00 in (17.78 cm)
Weight: Device: 11.40 lbs (5.17 kg)
Cart Maximum Safe Working Load: 17.00 lbs (7.71 kg)
Sound Level: On Setting 2 Continuous: 42 dBa
Alarm: 45 dBA @ 1m
Modes of Operation
1/8 L/min (±10 cc)
1/4 L/min
1/2 L/min
1 L/min
2 L/min (±10%)
Pulse Dose:
Setting 1: 240 mL/min (±15%)
Setting 2: 380 mL/min (±15%)
Setting 3: 520 mL/min (±15%)
Setting 4: 660 mL/min (±15%)
Setting 5: 780 mL/min (±15%)
Oxygen Concentration: 87% to 95% on all settings
Start Up Time: 87% O2 Concentration ≤ 10 min
Breath Rate Range: 15 - 35 B/min
Maximum Limited Pressure (Outlet Pressure): 10 PSI (0.69 Bar)
Power Supply:
AC Input: 100-240 VAC, 47-63 Hz, 2.5A
DC Output: 15 VDC, 10A
Battery Duration:
Pulse Mode
Setting 1: 3.3 Hours
Setting 2: 3.0 Hours
Setting 3: 2.8 Hours
Setting 4: 2.5 Hours
Setting 5: 2.3 Hours
Continuous Mode
1/8 5.0 Hours
1/4 4.3 Hours
1/2 3.3 Hours
1 1.8 Hours
2 0.8 Hours
Operating Environment Ranges:
Temperature: TOC 41°F to 104°F (5°C to 40°C)
Humidity: 0% to 95%, non-condensing but not requiring a water vapour partial pressure greater than 50 hPa
Atmospheric Pressure: 700 hPa to 1060 hPa
Altitude: 0 to 10,000 ft (0 to 3048 m)
Shipping and Storage Environmental Ranges:
Temperature: -4°F to 104°F (-20°C to 60°C)
Humidity: 0% to 95%, non-condensing 95°F (35°C) at water vapour pressure up to 50 hPa
Pulse Mode: Maximum 7 ft (2.1 m) long standard adult single lumen nasal cannula. Maximum oxygen flow ≥2 L/min
Continuous Mode: Maximum 30 ft (9.1 m) long standard adult single lumen nasal cannula. Maximum oxygen flow ≥2 L/min
Mode of Operation: Continuous Duty
Type of Protection against Shock: Class II
Degree of Protection against Electrical Shock: Type BF
Degree of Protection against Ingress of Water: IP22

*Specifications are subject to change without prior notice.
