Graham Field Q-Series UV Magnifier Hand Held Woods Exam Lamp

Graham Field Q - Series UV Magnifier Hand Held Woods Exam Lamp

The Graham-Field Q-Series UV Magnifier Hand-Held Wood’s Exam Lamps are high-quality diagnostic tools designed for medical and clinical environments. Equipped with UV and white light settings, they offer reliable illumination for detailed skin and scalp examinations. Featuring a precision-ground magnifying lens and lightweight, ergonomic design, the Q-Series lamps provide optimal viewing comfort and portability. Ideal for dermatological assessments, these lamps meet stringent quality standards and are available in multiple models to fit a variety of diagnostic needs.

Features

• Q-Series UV Magnifier Hand Held Woods Exam Lamps
• Ideal for visual magnification during fluorescence analysis
• Designed to detect trace amounts of fluorescence through its built-in magnifier lens
• Ideal for physicians' offices, emergency rooms, and outpatient facilities
• Portable, handheld unit
• Can be used for Woods Exam and to aid in diagnosis of conditions and injuries such as skin diseases, corneal scratches, and ethylene glycol poisioning
• Magnification: 3 x magnification at 8" focal length
• Impact-resistant polycarbonate housing
• Aluminum reflector maximizes irradiance
• Phenolic handle with a friction-lock swivel joint for comfort and flexibility
• UL Listed

Tube

• Two 4 Watt Integrally Filtered Tubes
• Typical Peak UV Intensity at 6": 650 ?W/cm2
• Dimensions: 7" (L) x 5¾" (W) x 2¼" (H)

Item 2201

• Long Wave (UVA) with Pedestal Stand
• Tube: two 4 Watt Integrally Filtered Tubes
• Typical Peak UV Intensity at 6": 650 ?W/cm2
• Dimensions: 7" (L) x 5¾" (W) x 2¼" (H)

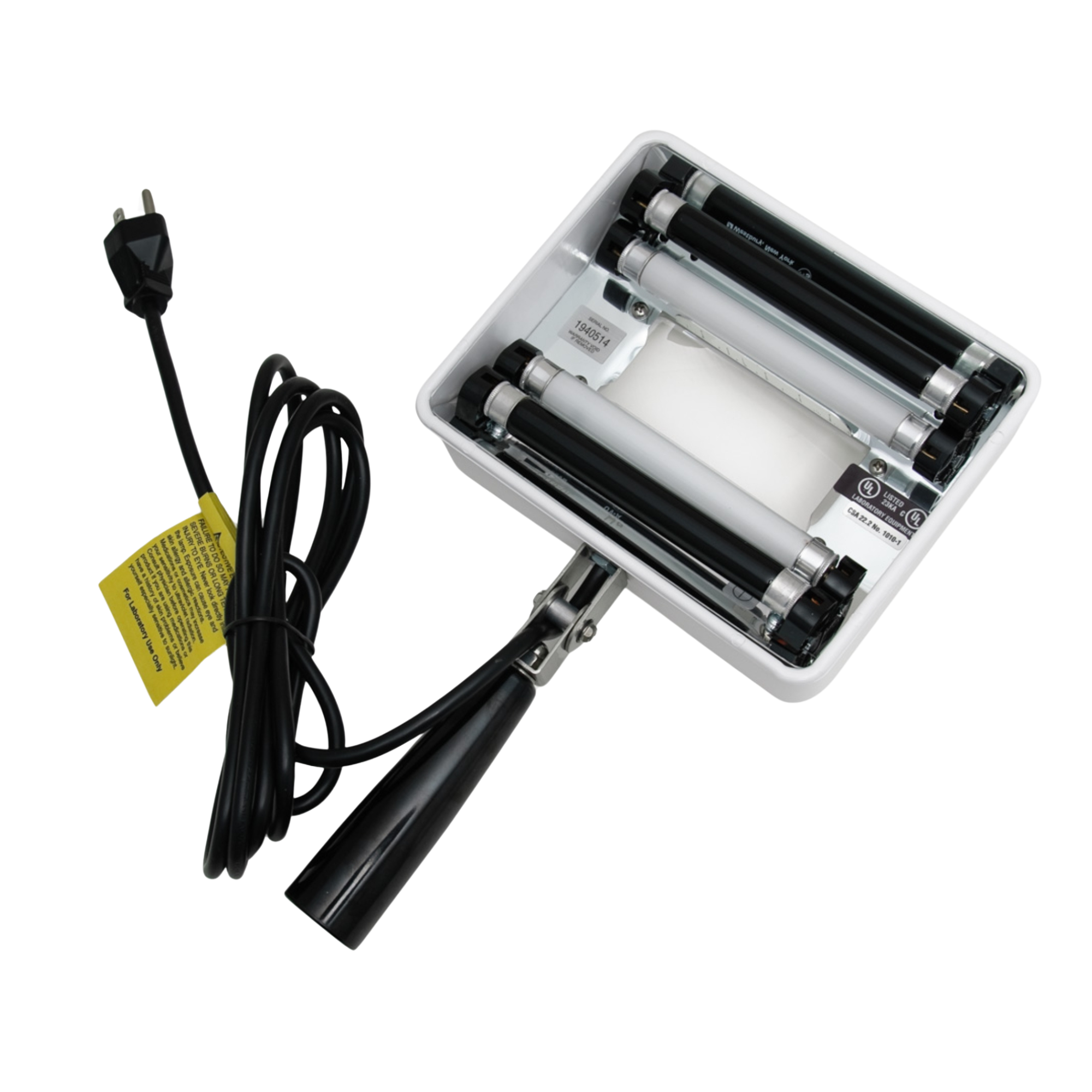

Item 2203

• Long Wave (UVA) with White Light
• Tube: two 4 Watt Integrally Filtered UV-A tubes and two 4 Watt white light tubes
• Typical Peak UV Intensity at 6": 650 ?W/cm2
• Dimensions: 7" (L) x 5¾" (W) x 2¼" (H)

Specification

• Brand: Graham Field
• Product Type: UV Magnifier Hand Held Woods
